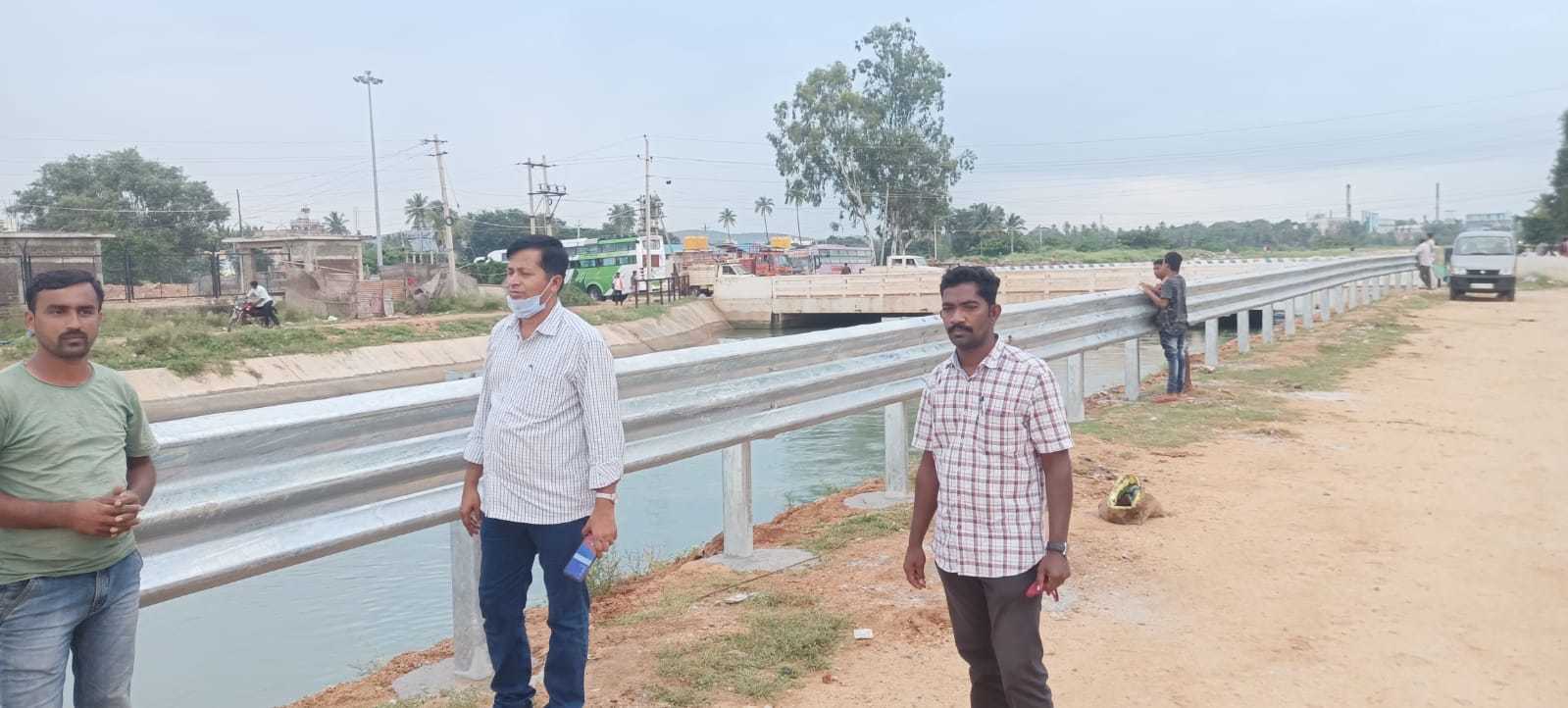

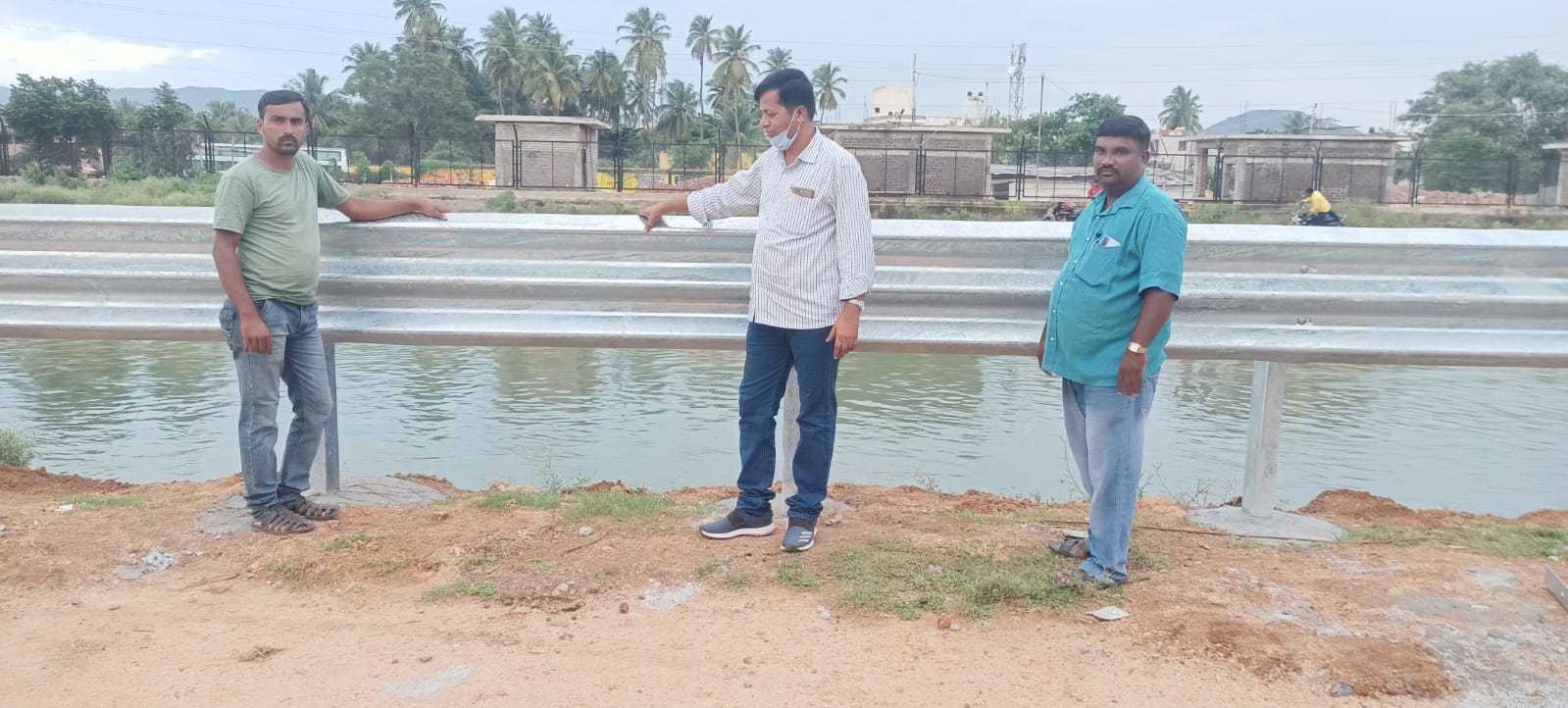

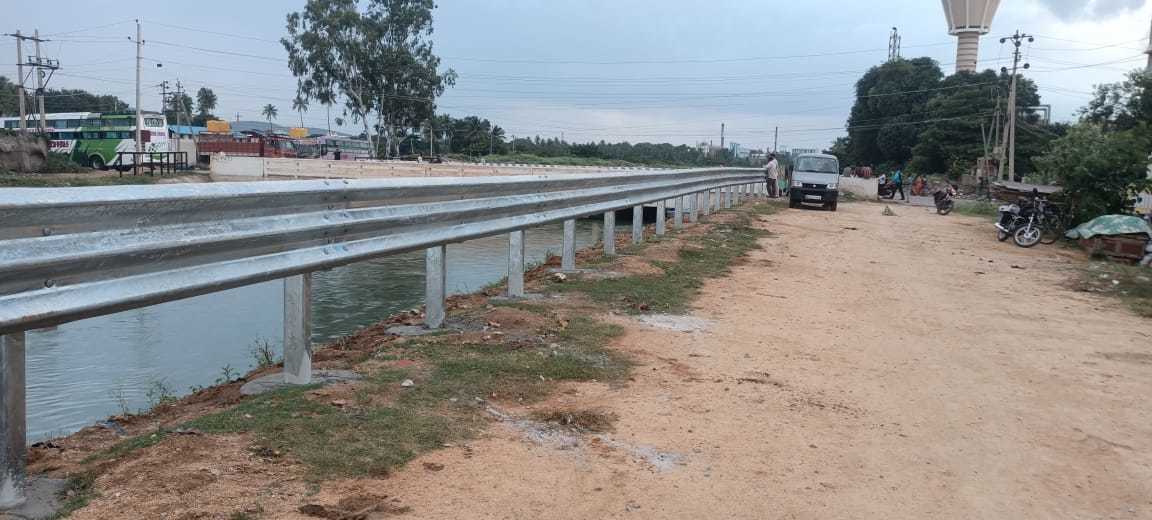

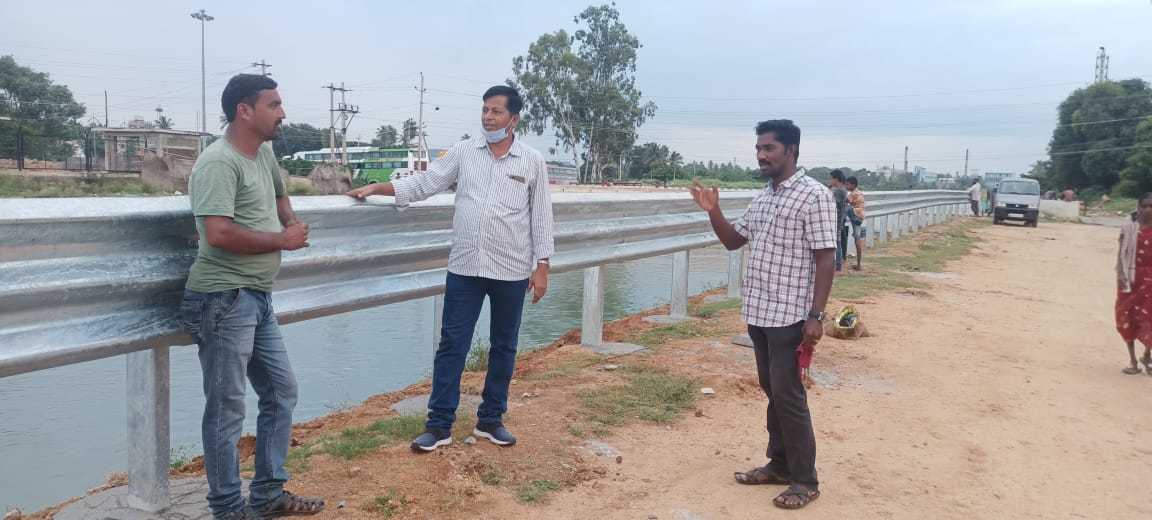

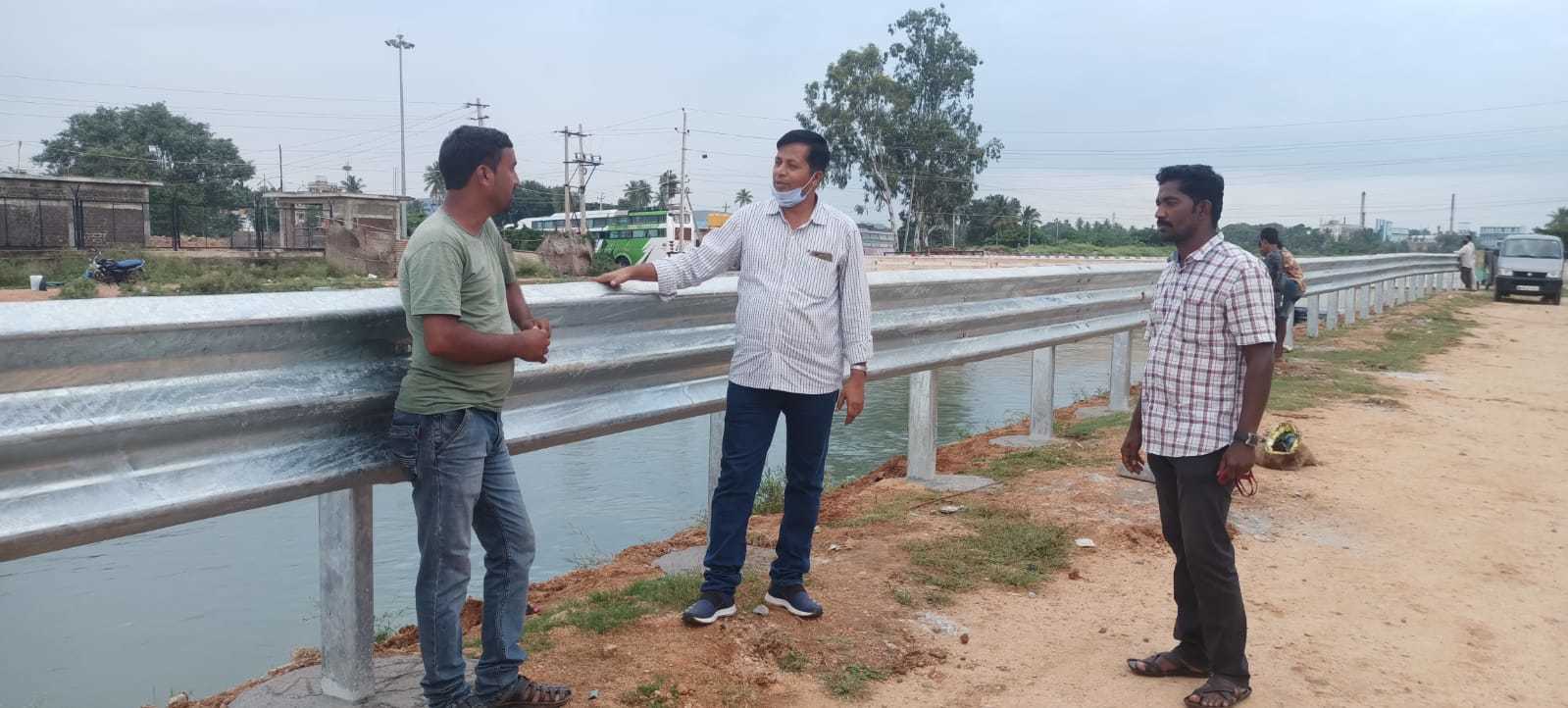

W Beam Crash Barrier

W Beam Crash Barrier

Product Details:

  • Application Road safety
  • Product Type W beam
  • Main Material MS hot roll
  • Surface Treatment Hot dip galvanized
  • Size 4 mtr to 6+ mtr
  • Weight 24 kg per meter Kilograms (kg)
  • Usage highway crash barrier
  • Supply Ability : 3000 Meter Per Day
X

Price And Quantity

  • INR/Meter
  • 100 Meter

Product Specifications

  • Road safety
  • highway crash barrier
  • MS hot roll
  • Hot dip galvanized
  • 4 mtr to 6+ mtr
  • highway road safety beam
  • 24 kg per meter Kilograms (kg)
  • W beam

Trade Information

  • 3000 Meter Per Day
  • 1 Days
  • Yes
  • Free samples are available
  • Asia
  • All India

Product Description

We are the manufacturing of W METAL BEAM CRASH BARRIERS (GUARD RAILS). We have set up a state-of-art manufacturing facility supported by well-equipped testing facilities for Metal Beam Crash Barriers in Buildtech Engineering we manufacturing all range of Crash Barrier, spares, Guard rails to support all your needs. We are having the set up and facilities for manufacturing regular& customized W Beam and Thrie Beam type Crash Barriers, spacer &post along with best quality of hot-dip galvanizing arrangement. Our vision is to manufacture & supply the Crash with stringent quality controls and to manufacture as per the specifications laid down by Ministry of Road Transport& Highways (MORTH) Ministry of Surface Transport (MOST), and also International Standards, viz., AASHTO 180, EN-1317-1&2. Currently we aree quipped with plant & machinery to produce 60,000 MT of Crash Barrier Annually.

Product Specification: W-Beam

W Beam Crash Barrier single side/Double Side Guard rail comprising of 3 mm (and also Customized)cold rolled section having minimum yield strength 2400 kg /sqcm having width of312 /510 mm and depth of corrugation as 83 mm with hot dip galvanized of zinccoating@ 550 g/sqm having total length 4.318 M (effective length 4M) and also customized, generally as per MORTH specification.

Post & Spacer Channel:

The Post/ Spacer channel made of cold rolled section having minimum yield strength 2400 kg/sqcm. The post/Spacer will be hot dip galvanized of zinc coating@ 550g/sqm having size of 150mm x75mm x 5mm thickness (and customized) x Length as per the drawing approved by project consultant.

Hex & round/button Head bolt with Nuts& washer: As per the requirement. Certification:

Base Metal (HR Coil)as per IS: 5986/10748/2062 of Grade Fe 410,510 etc of TATA/SAIL/JINDAL Make.

  • Min. yield Strength 235-255 mpa
  • Min. Tensile strength - 360-410 mpa


Galvanizing as per IS: 1364

  • Hot dip galvanizing, minimum deposition.
  • 550gm/M2 single spot.

Product Range:

1.W beam Crash Barrier: All types of W-Beam, Threi Beam, Post, Spacer, End Terminal, End shoes, Fish Tail (Available in allIndian & International Standard.

2.Pedestrian Guard Rail: Either from Tubul arpipes/ Square Hollow-sections.

Metal Beam Crash Barriers - W Beam and Thrie Beam

Production Capacity

200 MT per Month

Manufacturing Process

Cold rolling from HR Coil Slits with fully automated Mills

Components

W Beam, Thrie Beam, Post & Spacers

W & Thrie Beam

As Per MORT&H Length may be customized as per customer requirement

Post & Spacer

150mm x 75mm, Length may be customized as per customer requirement

Length of W & Thrie Beam

4 Mtrs., May be Customized as per requirement

Protective Coating

Hot Dip Galvanizing
